K2KM-500

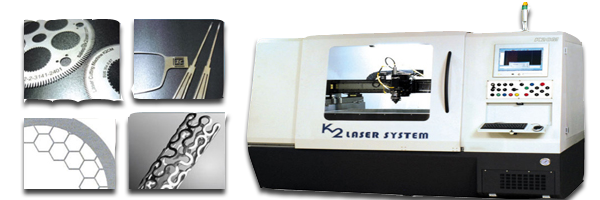

Supreme Precision & High speed Fiber Laser Metal Cutting Machine
- Long lasting life time(1000,000 hours) of laser module.
- Very specialize for thin sheet Precision cutting.
- Supreme Precision motion control by the linear motor.
- Auto focusing cutting head.
- Automatic assist gas pressure control.
- Easy to adjust the focus lens.
- Easy to replace the focus lens.
- Granit planet is mounted for batter flatness ans prevention of vibration.
- Low maintenance cost & energy- efficient.
- minimize burrs and roughness.
Application
Sheet metal Cutting , Wafer cutting , Stencil ,Gasket , Solar Cell.
Materials
MS,SS,Copper,Alloy,Solar cell,PCB,Flim,Ceramic,Silicon wafer,Fuel cell.
Specification
| Laser Power | 300 Watt | 500 Watt |
| Max. Cutting Thickness | MS: 3mm SUS: 1.5mm |
MS: 4mm SUS: 3mm |
| Power Consumptions | 5 Kw | 6 Kw |
| Motion Speed | 1500 mm/sec | |
| Supply voltage | 220v ,1p , 50~60 Hz | |
| Cooling system | Air cooling | |
| Assist Gas | N2 , O |
|
| Wave lenght | 1,070nm | |
| Cutting bed sizing | 450*450mm, 800*450mm, 1200*2400mm, 1500*3000mm | |
