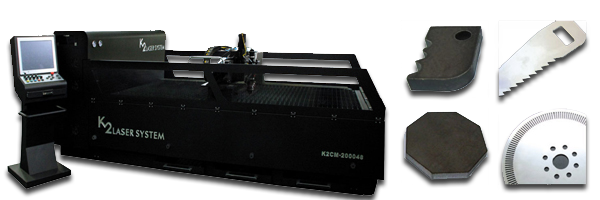

K2KM-2000
Fiber Laser Cutting Machine For Thik Sheet Metal
- Wide width of the cutting bed for maximum productivity
- Cutting speed is two times faster than conventional laser cutting machine
- Easy to switch over different laser sources according to customers request.
- Supreme precision motion control by the linear motor.
- Automation pallet changer for loading and unloading sheet metal while the machine is running.
- Sensing flecible surface by the auto focus cutting head.
- Automatic assist gas pressure control.
- Easy to adjust the focus lenght.
- Easy to replace the focus lens.
- z-axis calibration function for cutting head sensing.
Application
Sheet metal cutting , Wafer Cutting , Stencil, Gasket ,Solar cell.
Materials
MS,SS,Copper,Alloy,Solar cell,PCB,Flim,Ceramic,Silicon wafer,Fuel cell.
Specification
| Laser Power | 2000watt |
| Max. Cutting Thickness | MS: 12mm SUS: 6mm CU:3mm AL: 6mm Brass:4mm |
| Machine Dimension(mm) | 2244*3900*1,535mm |
| Power Consumptions | 18Kw |
| Cutting Bed Size(mm) | 450*450mm , 800*450mm,1200*2400mm, 1500*3000mm |
| Motion Speed | 1500mm/sec |
| Supply Voltage | 220v/1p, 380v/3p, 50~60Hz |
| Cooling System | water cooling |
| Assist Gas | N2 , O |
| Wave lenght | 1,070nm |
| Cutting bed sizing | 450*450mm, 800*450mm, 1200*2400mm, 1500*3000mm |
