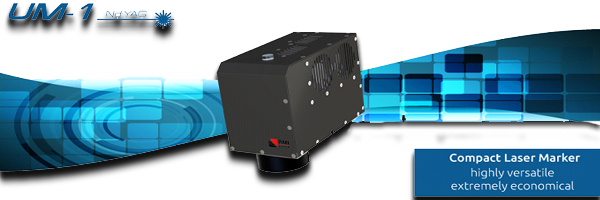

UM-1 Ultra Compact and Versatile Laser Marking System
Compact marking system for both metals and plastics.
Marking versatility in an economical and ultra-compact package.
The UM-1 is a fully-featured, high performance laser marking system that produces high quality laser marking at a low investment cost, ideal for small scale production environments.
It is the world’s most compact and best priced direct metal marking laser and it’s performance is totally unmatched in the industry today.
The UM-1 is truly marking versatility in an economical and ultra-compact package. If you have any question as to whether or not you can afford or could use a laser marking system this is the machine that will convince you. This laser gives us an advantage over our competition, let it do the same for you.
Available in 1 watt configuration, the UM-1 also has a complete 2 year warranty.
Marker Head
| Laser Source Built-in | Built-In, Diode Pumped Nd:YAG4 |
| Wavelength | 1064 nm |
| Laser Source Output | 1 W CW equivalent |
| Peak Power | Up to 30 kW |
| Q-switch pulse width | ~8 ns @ 5kHz |
| 100mm F-Theta Lens:Beam Spot Diameter Max Marking Area | ~70 µm 2.5 x 2.5” 65 x 65mm |
| 163mm F-Theta Lens:Beam Spot Diameter Max Marking Area | ~90 µm 4.1 x 4.1” 105 x 105mm |
| Lenses available(back focal length) | 100 & 163 mm |
| Dimensions** | 9.64 X 5.16 X 6.85" 245 X 131 X 174 mm (without F-theta lens) |
Power Supply
| Operational Temp Range* | ~50–95˚F ~10-35˚C |
| Operational Humidity Range* | 80% non-condensing |
| Weight | 7.0 lbs 3.2kg (w/ cables) |
| Dimensions LxWxH** | 6.0 x 9.0 x 3.0" L152 x W229 x H75 mm |
| Power Source | AC 100 - 240V 2A, 50/60Hz) |
| Consumption Power | 200 W max |
