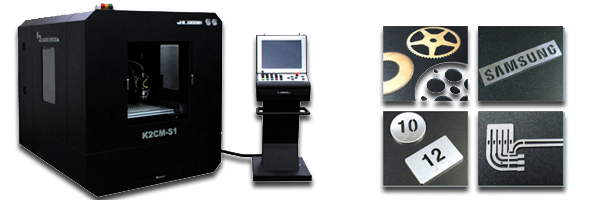

K2KM- Q Series

Most advanced fiber laser cutting machine for special material

  • the most advanced fiber laser cutting machine for special materials.(Brass,Aluminum,Copper, Ceramic and special Material cutting.)
  • Pulsed and Continuous wavelength cutting mode.
  • Easy to switch over different laser sources according to customers request.
  • Supreme precision motion control by the linear motor.
  • Auto focusing cutting head.
  • granite plate is mounted for better flatness,precision cutting and prevention of vibration.
  • Automatic assist gas pressure control.
  • Easy to adjust the focus lenght.
  • Easy to replace the focus lens.
  • z-axis calibration function for cutting head sensing.

Application

Sheet metal cutting , Wafer Cutting , Stencil, Gasket ,Solar cell.

Materials

MS, SS, Brass,Alloy , Solar cell , PCB , Film ,Ceramic ,Silicon wafer,fuel cell

Specification

Laser Power 150watt
Max. Cutting Thickness MS:2mm SUS:1.5mm Cu:0.8mm Al:0.8 Brass: 0.8mm
Machine Dimension(mm) 1500* 2075*1803mm
Power Consumptions  5Kw
Cutting Bed Size(mm) 450*45mm , 800*450mm
Motion Speed 1500mm/sec
Supply Voltage 220v/1p 50~60Hz
Cooling System air cooling
Assist Gas N2 , O2
Wave lenght 1,070nm
