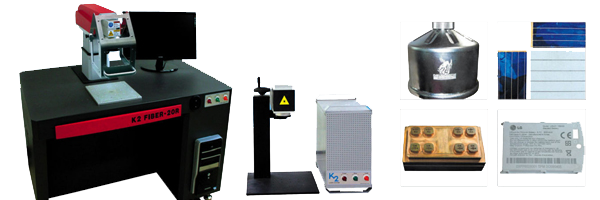

K2KM-2000

Precision Making and Engraving Machine For Metal and Plastic Material

  • High speed precision galvanometer scanner applied.
  • Supreme precision engraving for ultra small characters.
  • A veriety of different application covered by wide range of frequency band width (2K~ 1000KHZ)
  • Multifunctional marking software.
  • Automatically generates serial number, date and text.
  • Creating various tyoe of barcodes.
  • Compact size and light weight.
  • Easy to install and move
  • Suitable for automation.
  • Marking on the moving target.
  • Semi automatic focus length adjustment.
  • 300watt low power consumtion
  • No maintenance cost
  • Long lastic life time(1000,000 hours ) of laser modules

Application

Serial and barcode making , Soller cell cutting , Electric part logo , Mbile keypade printing , Auto mobile parts , Surgical Instruments , utra hard tools , Mold , Accessories , Plastic marking.

Materials

All king of metal , Plastic , ceramic , PCB , Semiconductor , ABS , fuse , Gasket , Film.

Specification

Laser Type ytterbium pulsed fiber laser
Laser Power 10/20/30 watt
Machine Dimension(mm) L1,200* W750 * H1,287mm
Power Consumptions  300watt
Pulsed frequency 20~80 KHz / 2~1000KHz
Marking area 100*100mm / 180*180mm
Operation Humidity 45~85%
Cooling System Air cooling
Supply voltage 220v single- phase 50~60Hz
Beam spot 20um ~ 40um
Min. character size 0.01~0.2mm
Operating temprature 0~30 C
